Practise for the GDTP exam the way it is set: read the drawing, decide, check the numbers.
Original ASME GDTP (Y14.5-2018) questions with drawings for both levels: full 150-question Technologist and Senior simulators, section drills, a question-bank reader, study notes, worked examples, flashcards, a 30-day plan and a readiness tracker, online in your account.
Sitting the Senior exam? Read the GDTP Senior page, part of this same kit, or try the free Senior sample.
Open your GDTP practice area. Your original practice tests stay on your study desk.
The exam in brief
- 150 questions per level, closed book. Technologist up to 4 hours, Senior up to 6 hours. The standard is not allowed in the room.
- Pass: 74% overall and at least 50% in every section. Both conditions. The 78% figure you may see belongs to the older 2009 exam.
- ASME publishes the section weights. Technologist: Sections 3 to 6, 25%; datum reference frames, 20%; form, 5%; orientation, 5%; position, 25%; profile, 15%; runout, 5%. Senior puts 30% on datum reference frames and 20% on profile.
- Concentricity and symmetry were deleted in 2018. Position, runout and profile do that work now. Material that still teaches them as live controls is out of date.
What is in the kit, and when
You buy once. Every later part appears in your account automatically, at no extra cost.
Stage 1: Technologist questions
- Technologist question bank with drawings
- Three full Technologist simulators
- Section drills
- Question-bank practice
Stage 2: Study material
- Study notes per section, with drawings
- Worked examples
- Flashcards
- 30-day plan and readiness tracker
Stage 3: Senior level
- Senior question bank with drawings
- Three full Senior simulators
- Senior section drills
Choose your option
Price in USD. Local currency and any applicable tax are shown at checkout. Secure checkout by Dodo Payments. By buying you accept the personal licence in our Terms and the refund policy.
How access works
All paid items are online and view-only in your logged-in account. There are no files to download. Questions and drawings are served one at a time in the simulator, the drills and the question-bank reader. Every drawing and page carries your details. Accounts are for one person and cannot be shared; read the personal licence.
Why these questions are demanding
We do not claim they are harder than anyone else's, because you cannot check that. Here is what you can check.
- Drawing-based questions. A large share of the questions show a drawing or a feature control frame you must read to answer: datum letters, modifiers, basic dimensions, inspection data.
- Calculations with a judgement step. Bonus tolerance, virtual and resultant condition, actual position from x and y deviations, fastener formulas, profile zones, datum feature shift. Every number was recomputed in code.
- Written to Y14.5-2018. Deleted controls appear only as wrong options, explained as deleted.
- Every option is explained. Why the right answer is right and why each wrong one is wrong, with the arithmetic shown.
- Checked for repeats across the whole bank. A reworded copy, or the same question with new numbers, is blocked.
- Reviewed twice. Each batch is checked by a second reviewer who did not write it, against the standard, and every drawing against its question.
Who wrote it
Sandeep Bandyopadhyay. Twenty years as an aerospace structures engineer at Boeing, GE Aviation and Siemens Gamesa. The questions are drafted with AI assistance and reviewed against a written standard; Sandeep reviews the hardest of every batch.
What we promise
We do not promise that you will pass. The exam depends on your preparation and on the day. We promise original questions written to Y14.5-2018 and an explanation for every option.

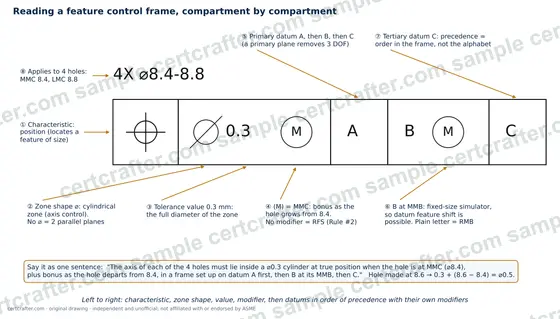

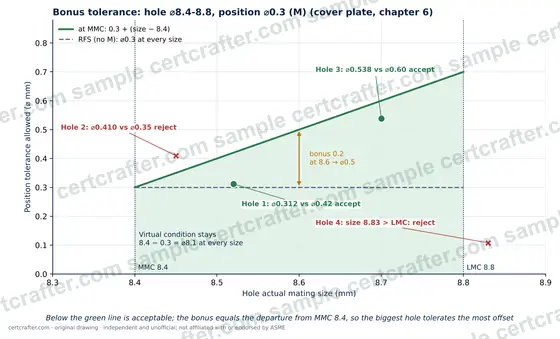

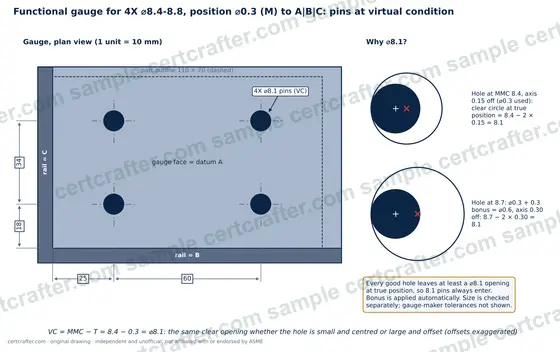

A look inside the study notes
Small previews. In the kit every figure is full size, inside the notes and on the flashcards.
GDTP kit FAQ
Is this affiliated with or endorsed by ASME?
No. certcrafter.com is not affiliated with or endorsed by ASME. ASME and GDTP are trademarks of ASME.
Which edition is this for?
ASME Y14.5-2018, which was reaffirmed in 2024 and is still current. Concentricity and symmetry, deleted in 2018, appear only as wrong options explained as deleted.
Is the kit complete?
Yes. The Technologist and Senior simulators, the section drills, the question bank, the study notes, worked examples, flashcards, 30-day plan and readiness tracker are all in your account now. You pay once.
I already bought the GDTP practice tests. Do I get the kit?
Yes. Everyone who owns the GDTP practice tests holds the complete kit automatically, and keeps the original six tests as well.
Can I download or print the paid material?
No. Every paid item is online access, view-only, inside your logged-in account. Printing, copying and saving are disabled and each page carries your details.
Are these the real exam questions?
No. Every question is original. We do not use exam content and do not know the actual exam questions.
Will I pass if I finish everything?
We cannot promise that, and no honest provider can. The kit gives you realistic practice and an explanation for every option.
How many devices can I use?
Up to 2 active sessions per account, for your own use. A new sign-in ends your oldest session. Accounts are single-user and cannot be shared.
How long do I have access?
Access is lifetime: your purchase has no expiry date.
ASME and GDTP are trademarks of ASME. certcrafter.com is not affiliated with or endorsed by ASME.
